In Electro Pneumatic Directional Control Valve Hydraulic Directional Control Valve

Control Method:Manual

Spool:3 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G3/4

Outlet Port:G3/4

Port Size:G3/4

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*23*11

Grossweight:10.70 kg

Availability: In Stock

616 Views are Looking for this Product

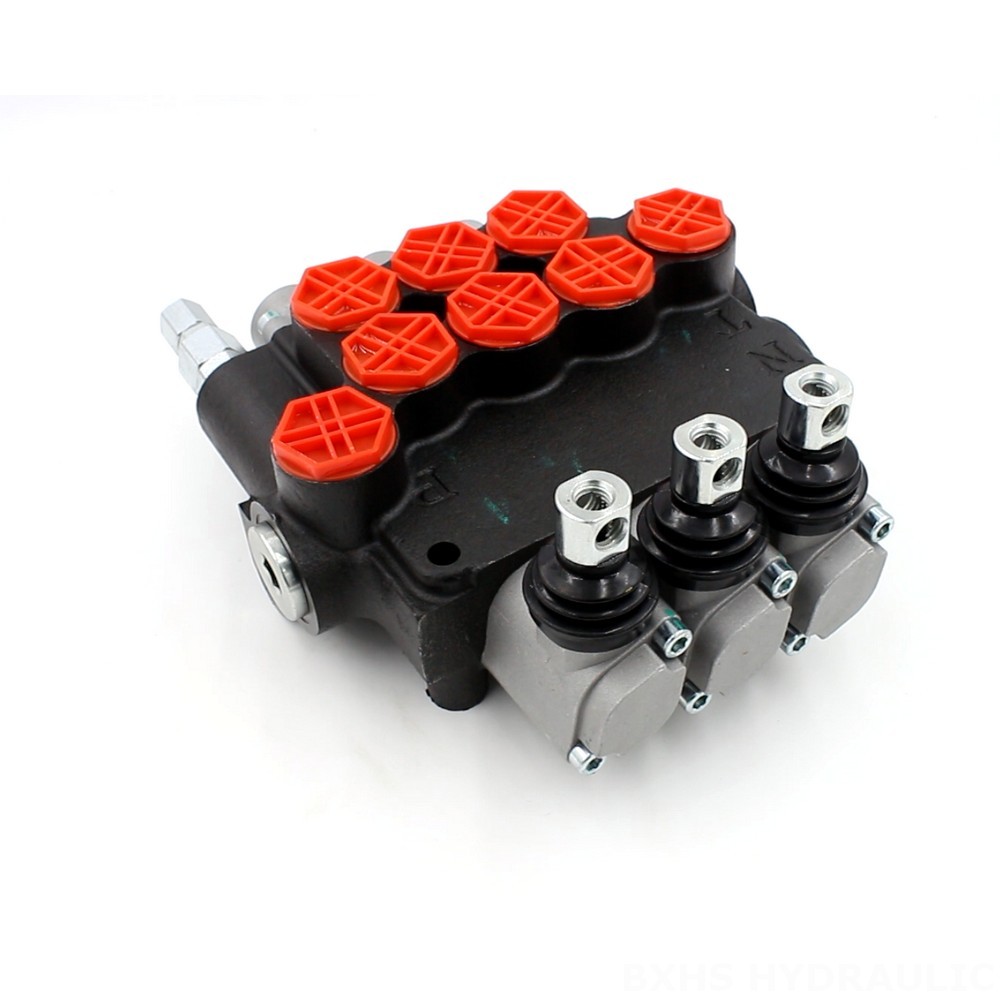

In Electro Pneumatic Directional Control Valve Hydraulic Directional Control Valve detailed image

In Electro Pneumatic Directional Control Valve Hydraulic Directional Control Valve detailed image

In Electro Pneumatic Directional Control Valve Hydraulic Directional Control Valve drawing image

This high-performance P80 Series Electro Pneumatic Directional Control Valve is a 3-section monoblock valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it offers reliable control for a wide range of equipment.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

The P80 Series Electro Pneumatic Directional Control Valve is a robust and efficient solution for demanding hydraulic applications. Its monoblock structure provides durability and reliability, while the manual control method allows for easy operation. This 3-section valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers. Its operating viscosity range of 15-75 mm²/s and ambient temperature range of -40°C to +80°C ensure optimal performance in diverse environments. The P80 Series valve is engineered for long-lasting performance and minimal maintenance requirements, providing a cost-effective and reliable hydraulic control solution.

In Electro Pneumatic Directional Control Valve Hydraulic Directional Control Valve application image

In Electro Pneumatic Directional Control Valve Hydraulic Directional Control Valve packing image

In Electro Pneumatic Directional Control Valve Hydraulic Directional Control Valve company image

In Electro Pneumatic Directional Control Valve Hydraulic Directional Control Valve certification image
