Pneumatic 1 Spool Hydraulic Control Valve - Manufacturer & Global Supplier

Control Method:Pneumatic

Spool:1 Spool

Rated Flow:16 L/min (4.2 US gpm)

Max Pressure:1 MPa (145 psi)

Inlet Port:G1/4

Outlet Port:G1/4

Port Size:G1/4

Vendor:BXHS

Product Type:Hydraulic Control Valve

Product Series:TC-4 Series Hydraulic Control Valve

Packagingsize:15*12*7

Grossweight:0.60 kg

Availability: In Stock

711 Views are Looking for this Product

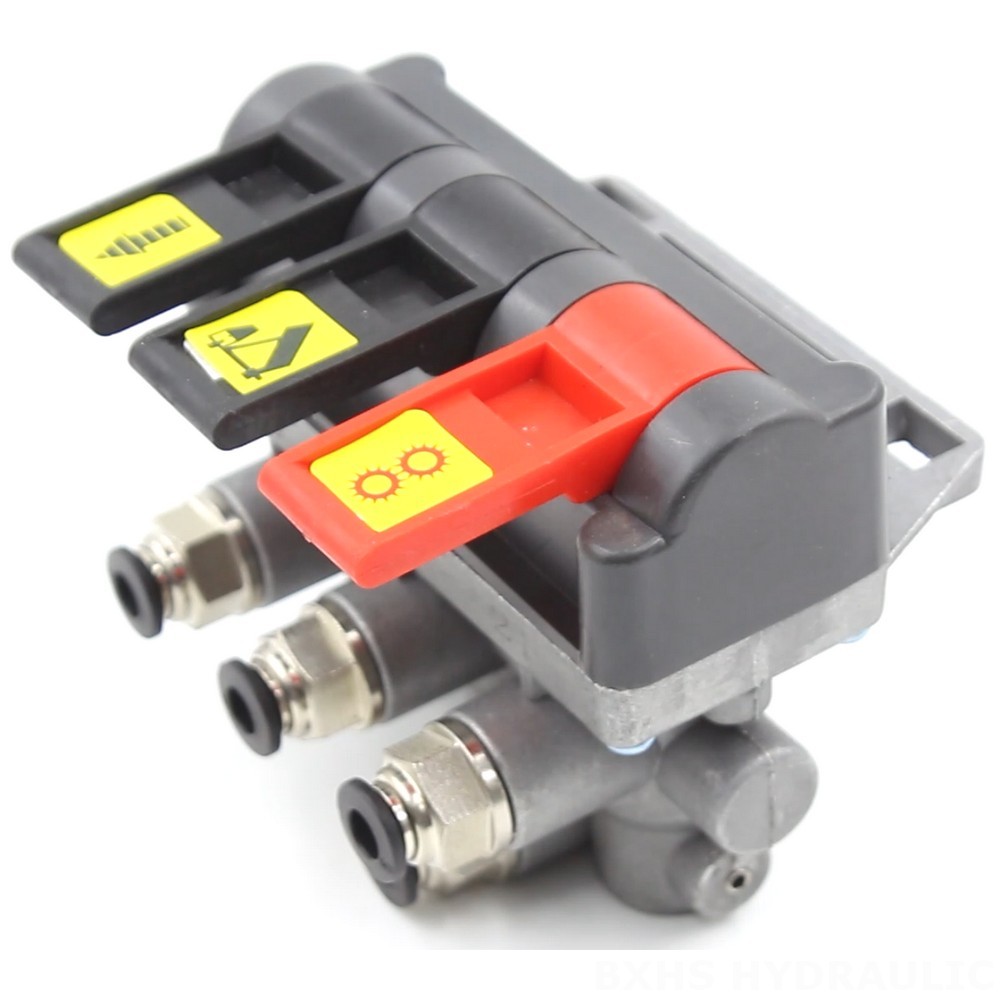

Pneumatic 1 Spool Hydraulic Control Valve - Manufacturer & Global Supplier detailed image

Pneumatic 1 Spool Hydraulic Control Valve - Manufacturer & Global Supplier detailed image

The TC-4 series pneumatic 1 spool hydraulic control valve is a robust and reliable solution for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. This monoblock valve features a single spool design, rated flow of 40 L/min, and maximum pressure of 160 bar, making it suitable for various demanding applications.

TC-4 Series Hydraulic Control Valve Parameters
Spool 1 Spool
Control Method Manual
Section 1 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 160 bar (2300 psi)
Rated Flow 40 L/min (10.5 US gpm)
Structure Type Monoblock valve

This pneumatic 1 spool hydraulic control valve from the TC-4 series is specifically designed for heavy-duty applications in material handling, construction, earth moving, agriculture, and industrial vehicles. Featuring a robust monoblock structure and a single spool design, this valve delivers high performance and reliability. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 160 bar (2300 psi), it effectively handles a wide range of hydraulic systems. The valve operates within an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and is designed to withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This makes it suitable for various challenging environments. The TC-4 series valve is ideal for applications such as forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters.
