Pneumatic Control Valve System | XQF22-A Model | Applications & Industries

Control Method:Pneumatic

Spool:1 Spool

Rated Flow:60 L/min (15.8 US gpm)

Max Pressure:1 MPa (145 psi)

Inlet Port:G1/4

Outlet Port:G1/4

Port Size:G1/4

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:XQF Series Monoblock Directional Valve

Packagingsize:25*10*8

Grossweight:0.65 kg

Availability: In Stock

1126 Views are Looking for this Product

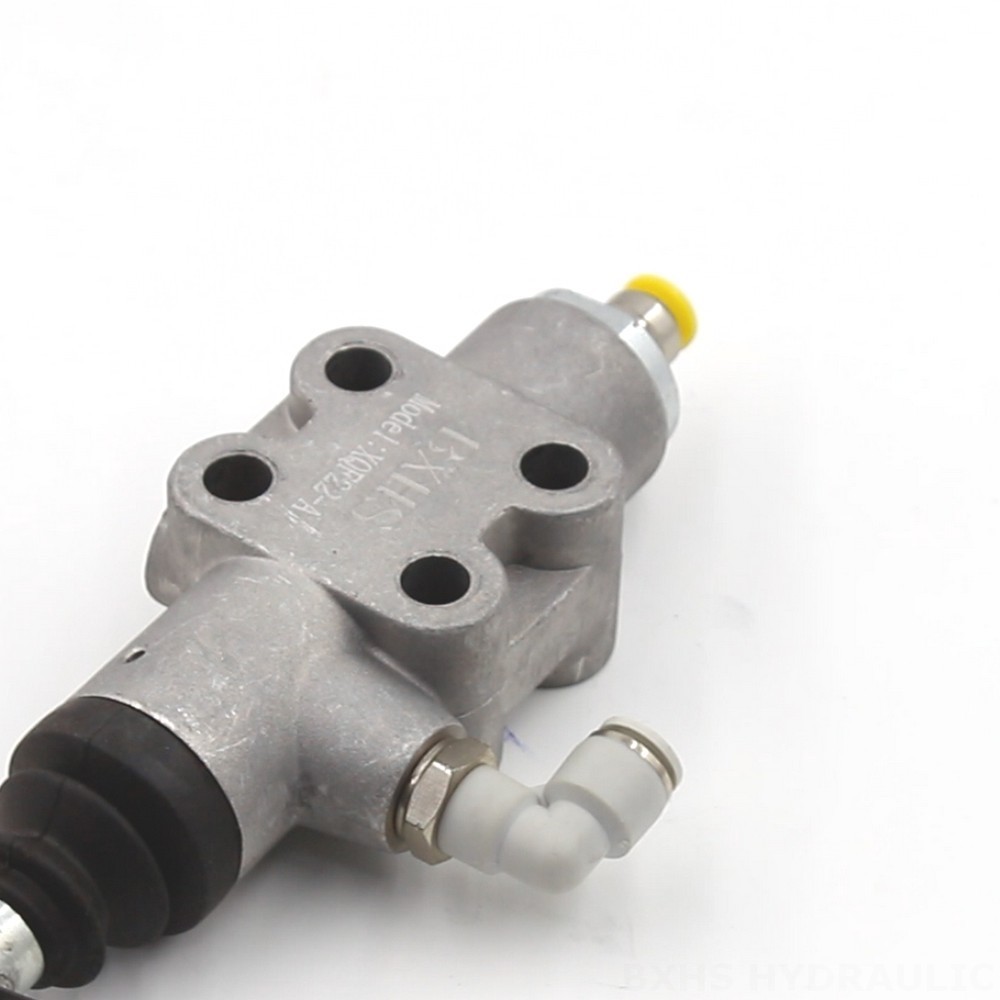

Pneumatic Control Valve System | XQF22-A Model | Applications & Industries detailed image

Pneumatic Control Valve System | XQF22-A Model | Applications & Industries detailed image

Pneumatic Control Valve System | XQF22-A Model | Applications & Industries drawing image

The XQF22-A Model Pneumatic Control Valve System is a single-section, pneumatically controlled valve with a rated flow of 60 L/min, a maximum pressure of 200 bar, and an operating viscosity range of 12-400 mm²/s. It has an ambient temperature range of -40°C to +60°C and is available with 1 spool.

XQF Series Monoblock Directional Valve Parameters
Spool 1 Spool
Control Method Pneumatic
Section 1 Section
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Max Pressure 200 bar (2900 psi)
Structure Type Monoblock valve

The XQF22-A Model Pneumatic Control Valve System is designed for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is suitable for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders.
