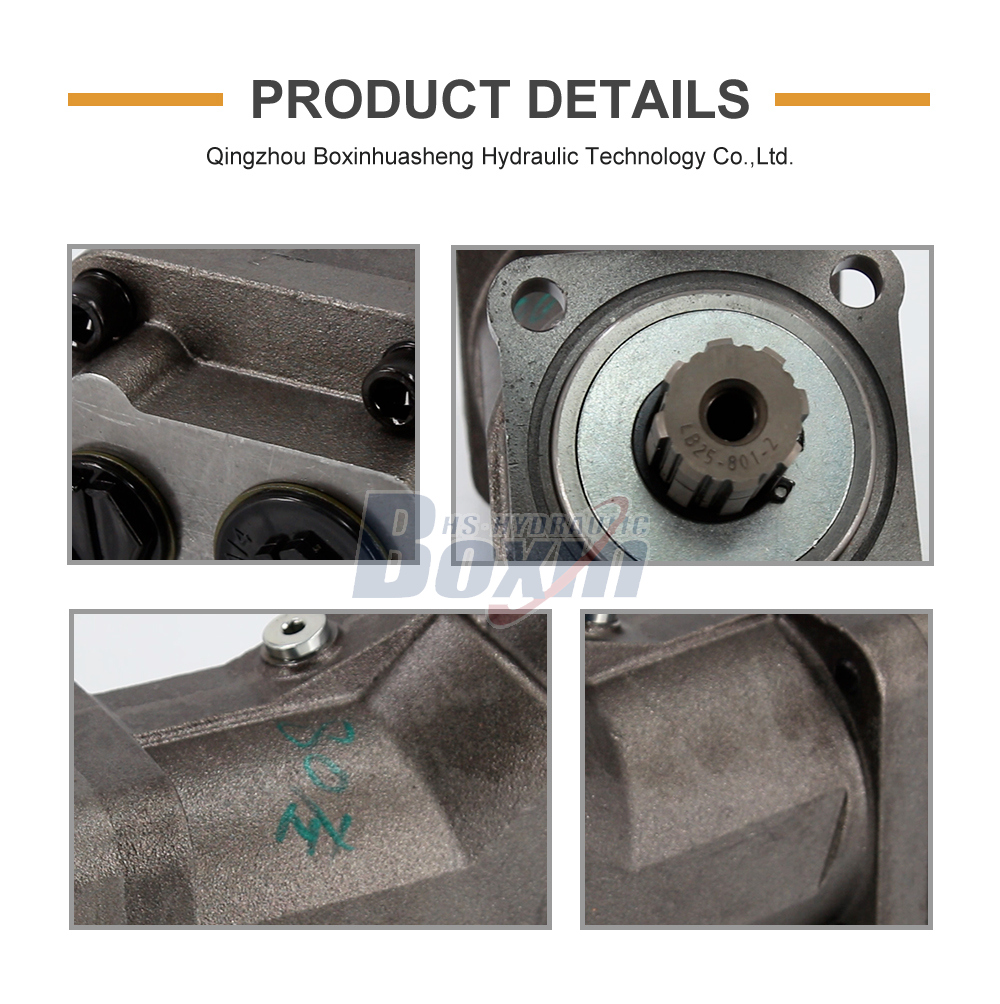

The XPI-108L is a high-performance 108 cc/rev swashplate-type hydraulic piston pump designed for demanding industrial and mobile applications. Engineered with a robust cast iron body and capable of reaching pressures up to 42 MPa, it provides reliable power delivery for heavy-duty machinery requiring precise and efficient flow control.
| XPI Series Hydraulic Piston Pump Parameters | |
|---|---|
| Displacement | 32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 25 cc/rev, 108 cc/rev |
| Rated Pressure | 38 MPa (5511 psi) |
| Max Pressure | 42 MPa (6091 psi) |
| Rated Speed | 1600 r/min |
| Max Speed | 1900 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Material | Cast Iron |
| Structure | Swashplate |
| Flange Version | ISO-4 Mounting Holes |
| Shaft Type | H: Rectangle Spline |
Engineered for excellence, the XPI-108L Piston Pump offers a displacement of 108 cc/rev, making it an ideal choice for high-flow hydraulic systems.
**Key Features & Advantages:**
- **High Pressure Tolerance:** Operates at a rated pressure of 38 MPa with a peak capacity of 42 MPa, ensuring durability under extreme loads.
- **Robust Construction:** Built with premium cast iron for superior wear resistance and extended service life in harsh environments.
- **Versatile Rotation:** Available in both Left (CCW) and Right (CW) rotation to match various vehicle engine configurations.
- **Standardized Mounting:** Features an ISO 4-hole mounting flange and a rectangular spline shaft for seamless integration with international equipment standards.
- **High Efficiency:** The swashplate design ensures low noise levels and high volumetric efficiency even at maximum speeds of 1900 r/min.
**Application Scenarios:**
This pump is widely utilized in construction machinery like concrete boom pumps and wheel loaders, as well as in industrial waste management vehicles (hook-loaders) and agricultural harvesters. It is the perfect solution for manufacturers and distributors seeking high-quality OEM or replacement parts for global hydraulic markets.
