XPi-80L 80 cc/rev 38 MPa (5511 psi) Hydraulic Piston Pump

Rated Pressure:38 MPa (5511 psi)

Max Pressure:42 MPa (6091 psi)

Vendor:BXHS

Product Type:Hydraulic Piston Pump

Product Series:XPI Series Hydraulic Piston Pump

Productsize:30*15*15

Netweight:15.50 kg

Availability: In Stock

  • 32 cc/rev
  • 40 cc/rev
  • 45 cc/rev
  • 50 cc/rev
  • 63 cc/rev
  • 80 cc/rev
  • 25 cc/rev
  • 108 cc/rev
357 Views are Looking for this Product

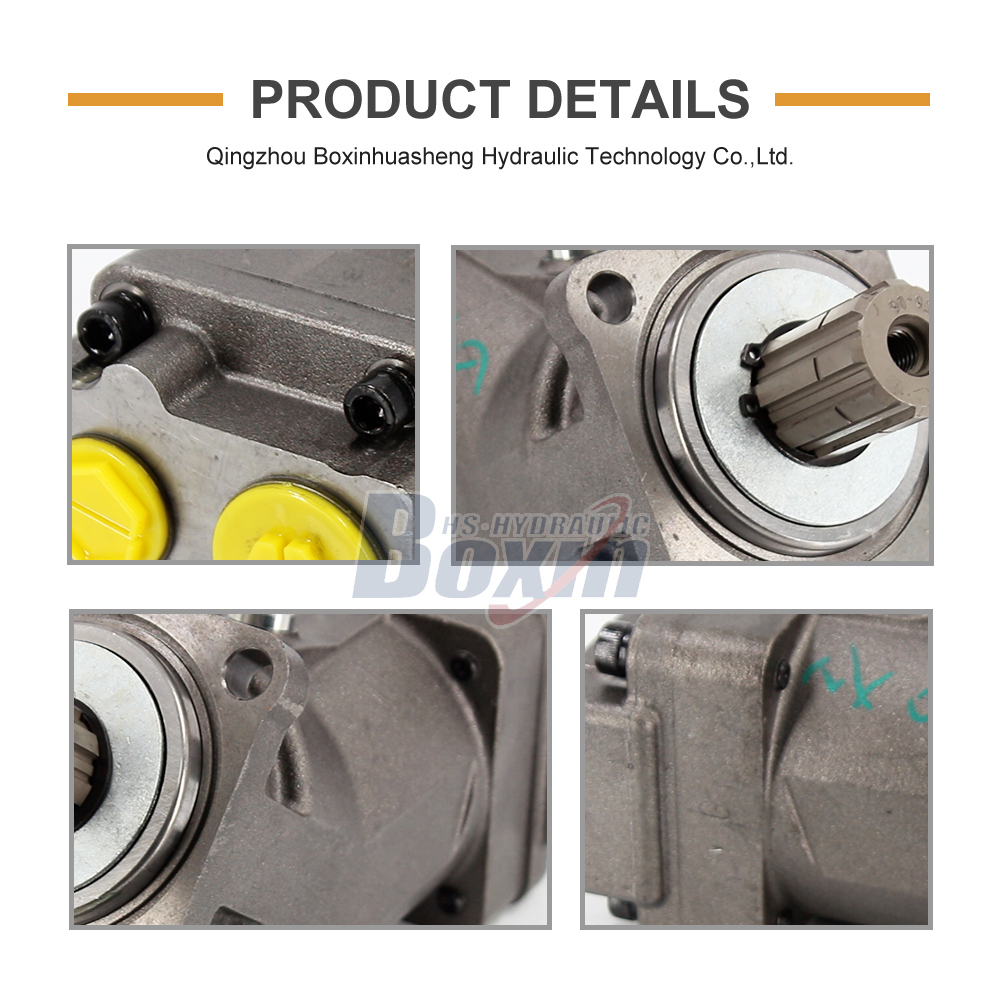

XPi-80L 80 cc/rev 38 MPa (5511 psi) Hydraulic Piston Pump detailed image

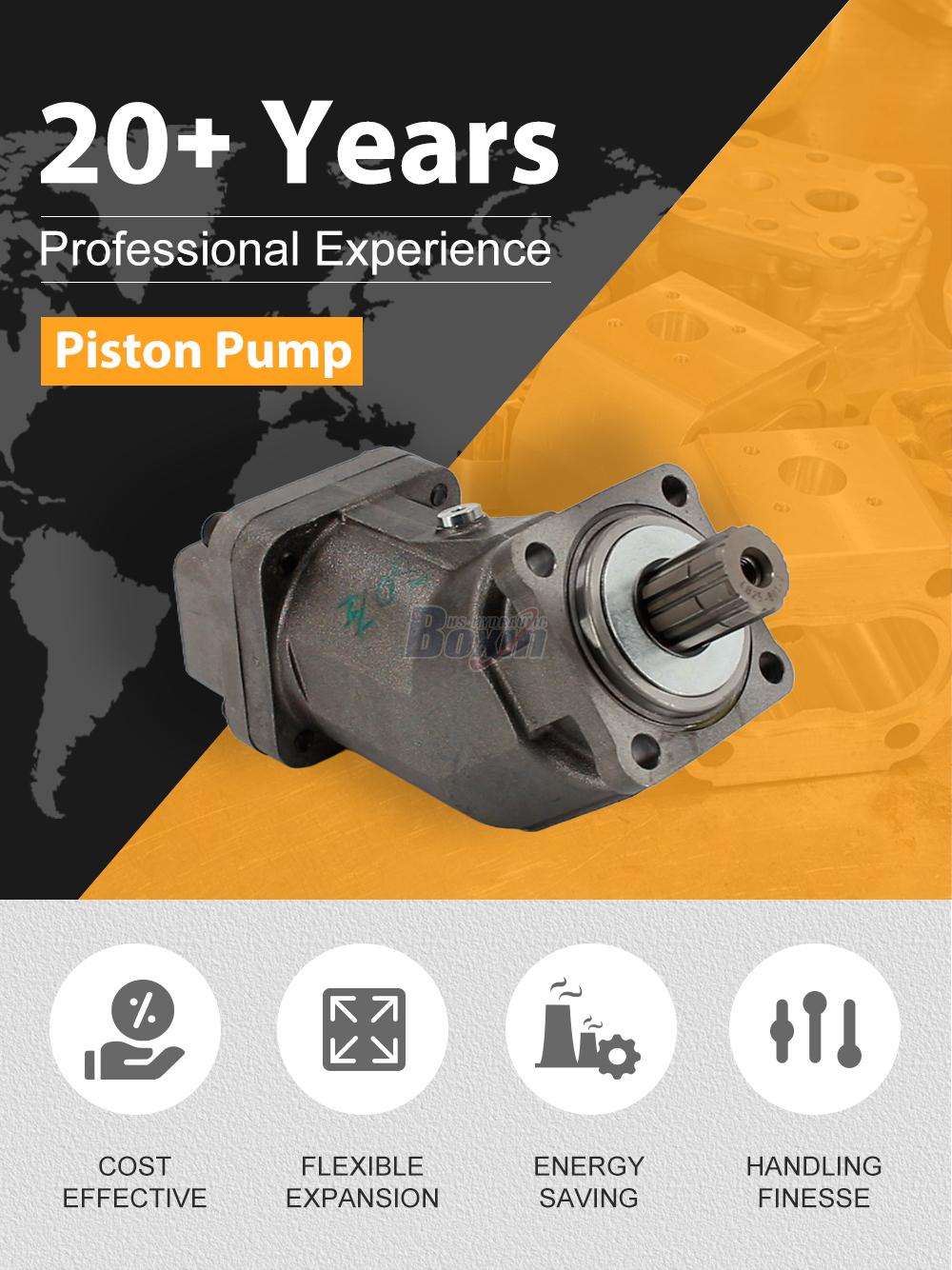

XPi-80L 80 cc/rev 38 MPa (5511 psi) Hydraulic Piston Pump detailed image

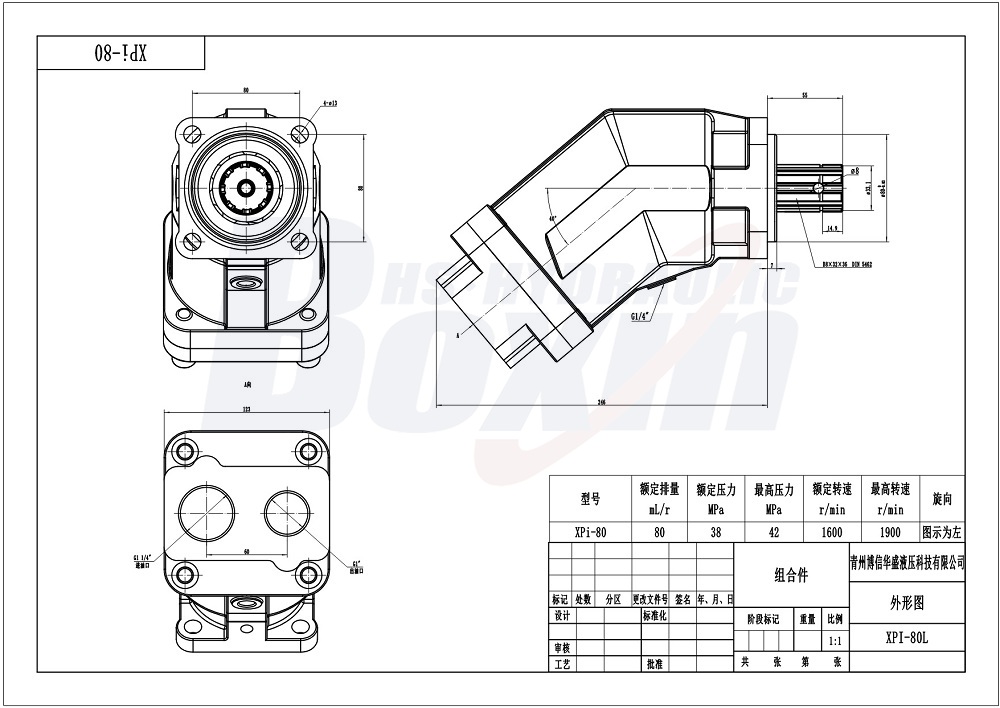

XPi-80L 80 cc/rev 38 MPa (5511 psi) Hydraulic Piston Pump drawing image

The XPI-80L is a high-performance 80 cc/rev swashplate-type axial piston pump designed for demanding hydraulic systems. Built with a robust cast iron housing, it delivers a rated pressure of 38 MPa and features ISO-standard 4-hole mounting for global compatibility.

XPI Series Hydraulic Piston Pump Parameters
Displacement 32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 25 cc/rev, 108 cc/rev
Rated Pressure 38 MPa (5511 psi)
Max Pressure 42 MPa (6091 psi)
Rated Speed 1600 r/min
Max Speed 1900 r/min
Rotation L: Left (counter-clockwise), R: Right (clockwise)
Material Cast Iron
Structure Swashplate
Flange Version ISO-4 Mounting Holes
Shaft Type H: Rectangle Spline

Product Features & Advantages: 1. High Pressure Performance: Engineered to handle a rated pressure of 38 MPa and peak pressures up to 42 MPa, ensuring reliability in heavy-duty cycles. 2. Premium Construction: The high-strength cast iron body provides excellent durability and noise reduction compared to aluminum alternatives. 3. Versatile Design: Features a standard ISO-4 hole mounting flange and rectangle spline shaft for easy integration into existing hydraulic circuits. 4. Bi-directional Availability: Supports both clockwise (R) and counter-clockwise (L) rotations to suit diverse drive configurations. 5. Efficiency: The swashplate structure ensures high volumetric efficiency and stable flow output even at max speeds of 1900 r/min. Application Scenarios: Ideal for construction machinery, industrial waste compactors, agricultural harvesters, and mobile hydraulic power units where high-pressure fluid power is critical.
