Zt 12 Hydraulic Valve Electro-hydraulic Valve | DCV40Z Model | Factory Direct & Customizable

Control Method:Electro-hydraulic

Spool:5 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:350 bar (5100 psi)

Inlet Port:G3/8

Outlet Port:G3/8

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:DCV40 Series Monoblock Directional Valve

Packagingsize:40*39*20

Grossweight:21.00 kg

Availability: In Stock

1014 Views are Looking for this Product

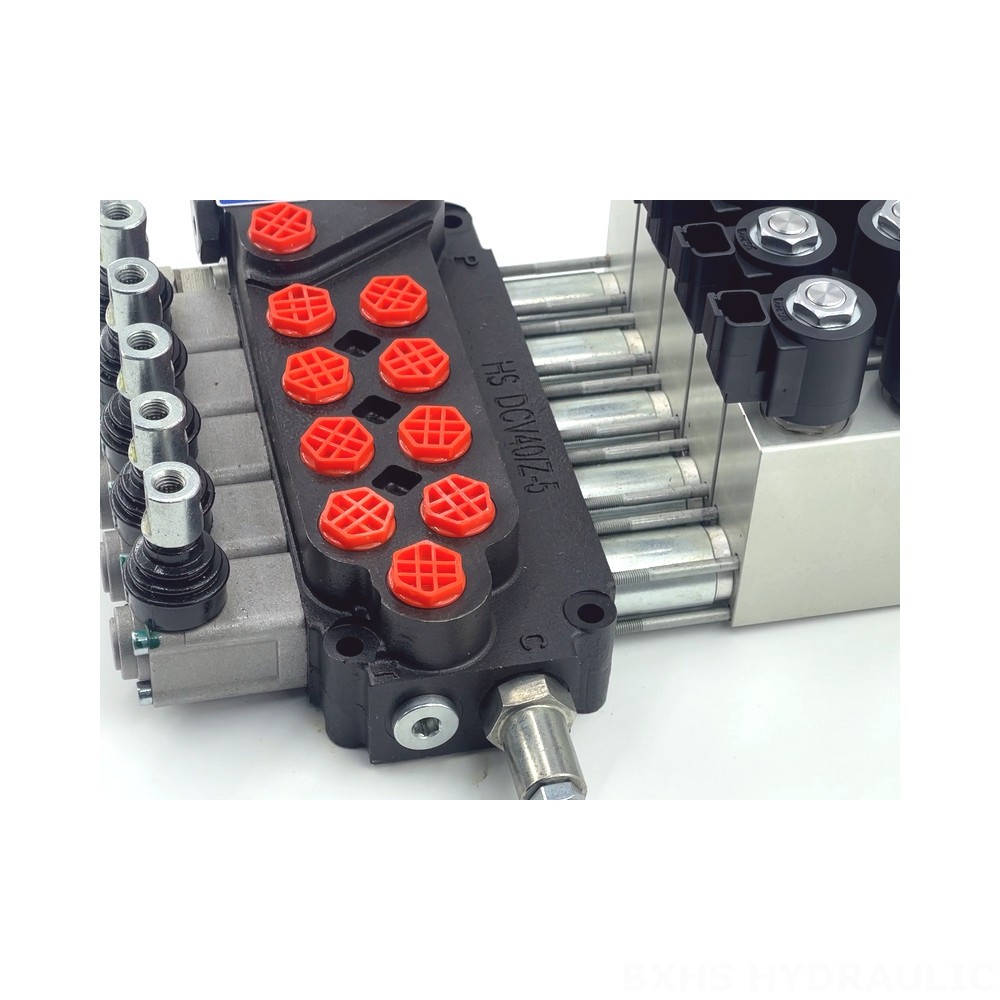

Zt 12 Hydraulic Valve Electro-hydraulic Valve | DCV40Z Model | Factory Direct & Customizable detailed image

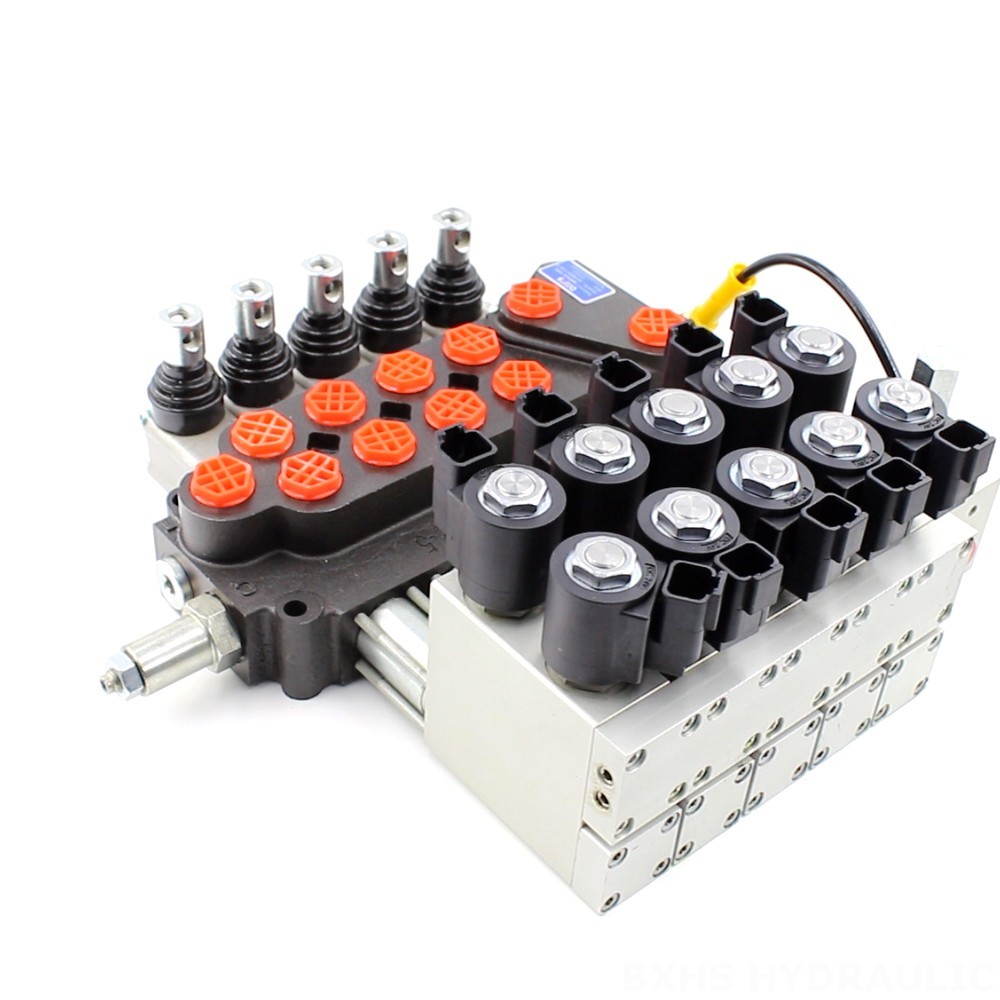

Zt 12 Hydraulic Valve Electro-hydraulic Valve | DCV40Z Model | Factory Direct & Customizable detailed image

Zt 12 Hydraulic Valve Electro-hydraulic Valve | DCV40Z Model | Factory Direct & Customizable drawing image

The Zt 12 Hydraulic Valve DCV40Z is a 5-section monoblock electro-hydraulic valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles.

DCV40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid And Manual, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 350 bar (5100 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The Zt 12 Hydraulic Valve DCV40Z is a robust and reliable electro-hydraulic valve designed for demanding applications. This 5-section monoblock valve features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 350 bar (5100 psi). Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The DCV40Z series is suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. It is customizable to meet specific requirements, making it an ideal choice for manufacturers and OEMs.
