DCV60 Electro-pneumatic 6 Spool Sectional Directional Valve

Rated Flow:60 L/min (15.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product series:DCV60 Series Sectional Directional Valve

Productsize:34*13*30

Netweight:32.80 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Manual
  • Solenoid and Joystick
  • Manual and Joystick
  • Electric motor
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
  • 11 Spool
  • 12 Spool
108 Views are Looking for this Product

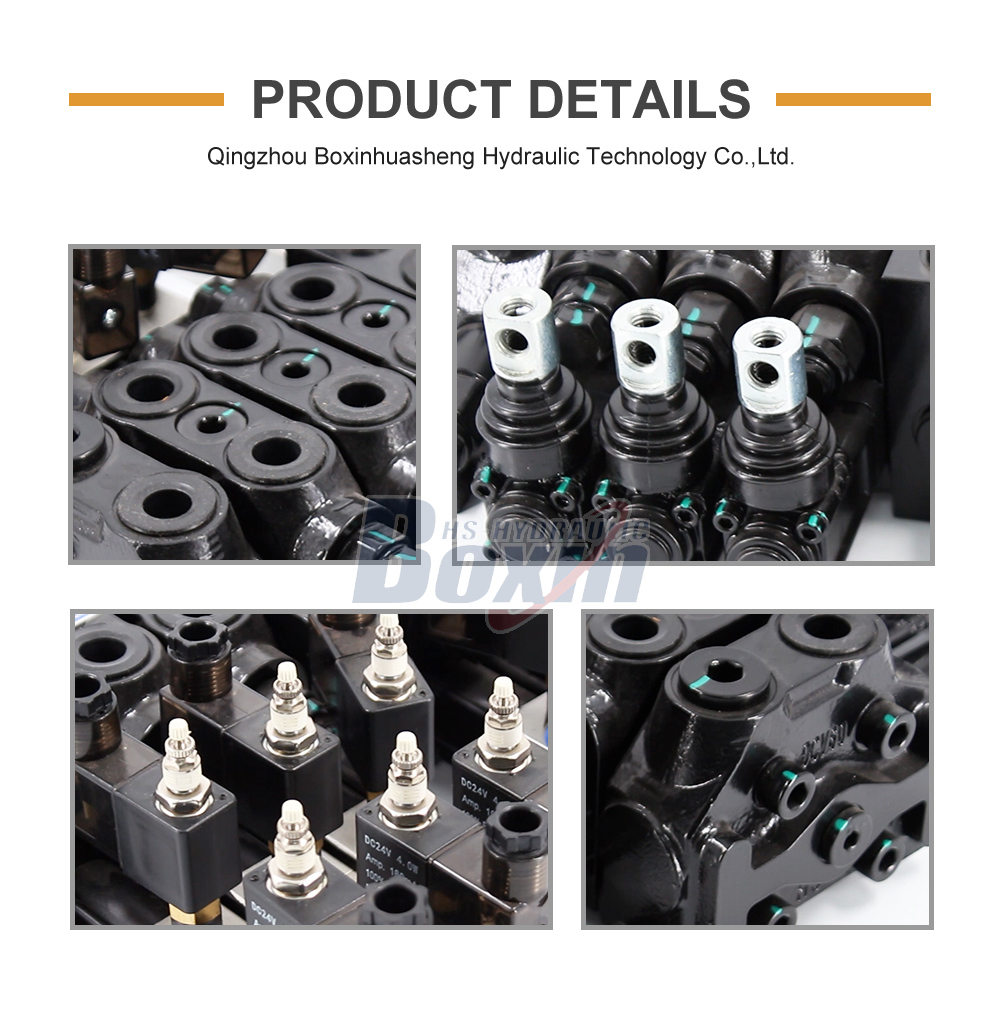

DCV60 Electro-pneumatic 6 Spool Sectional Directional Valve detailed image

DCV60 Electro-pneumatic 6 Spool Sectional Directional Valve detailed image

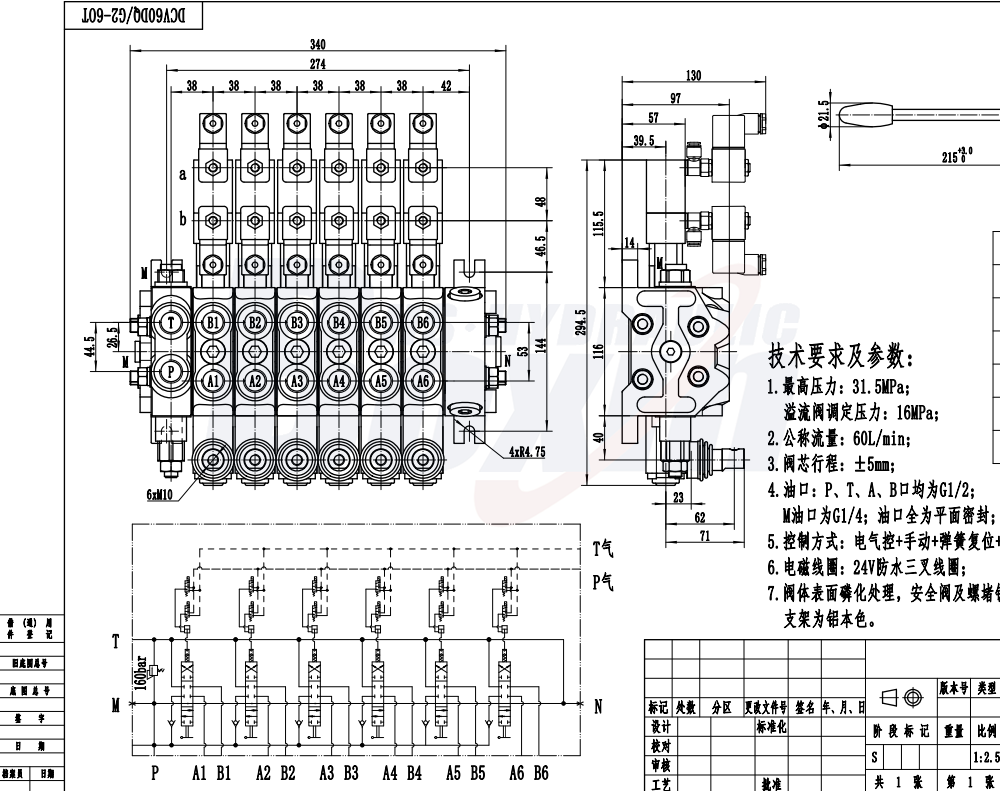

DCV60 Electro-pneumatic 6 Spool Sectional Directional Valve drawing image

The DCV60 is a versatile 6-spool sectional electro-pneumatic directional control valve designed for high-performance hydraulic systems. It offers a rated flow of 60 L/min and can withstand pressures up to 350 bar, providing precise fluid power management for a wide range of mobile and industrial machinery.

DCV60 Series Sectional Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Manual, Solenoid and Joystick, Manual and Joystick, Electric motor
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Sectional valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 60 L/min (15.8 US gpm)
Max Pressure 315 bar (4600 psi), 350 bar (5100 psi)
Inlet Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Outlet Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Size G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

Product Features & Advantages: 1. Flexible Control: Combines electrical and pneumatic actuation for efficient remote operation. 2. Sectional Design: Modular 6-spool structure allows for easy maintenance and customization to specific circuit requirements. 3. High Durability: Rated for high-pressure applications up to 350 bar (5100 psi) with an anti-corrosion finish. 4. Wide Compatibility: Features multiple port options including NPT, SAE, G, and Metric threads to suit global standards. 5. Precision Engineering: Optimized spool design ensures smooth shifting and minimal internal leakage across a broad temperature range (-40°C to +80°C). Application Scenarios: Ideal for construction machinery (skid steers, loaders), agricultural equipment (tractors, harvesters), and specialized industrial vehicles (waste compactors, wood splitters) where multi-functional control and reliable performance are critical.

DCV60 Electro-pneumatic 6 Spool Sectional Directional Valve application image

DCV60 Electro-pneumatic 6 Spool Sectional Directional Valve packing image

DCV60 Electro-pneumatic 6 Spool Sectional Directional Valve company image

DCV60 Electro-pneumatic 6 Spool Sectional Directional Valve certification image
