XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems

Displacement:108 cc/rev

Rated Pressure:38 MPa (5511 psi)

Max Pressure:42 MPa (6091 psi)

Max Speed:1900 r/min

Rotation:L: Left (counter-clockwise)

Vendor:BXHS

Product Type:Hydraulic Piston Pump

Product Series:XPI Series Hydraulic Piston Pump

Packagingsize:37*17*17

Grossweight:18.00 kg

Availability: In Stock

58 Views are Looking for this Product

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems detailed image

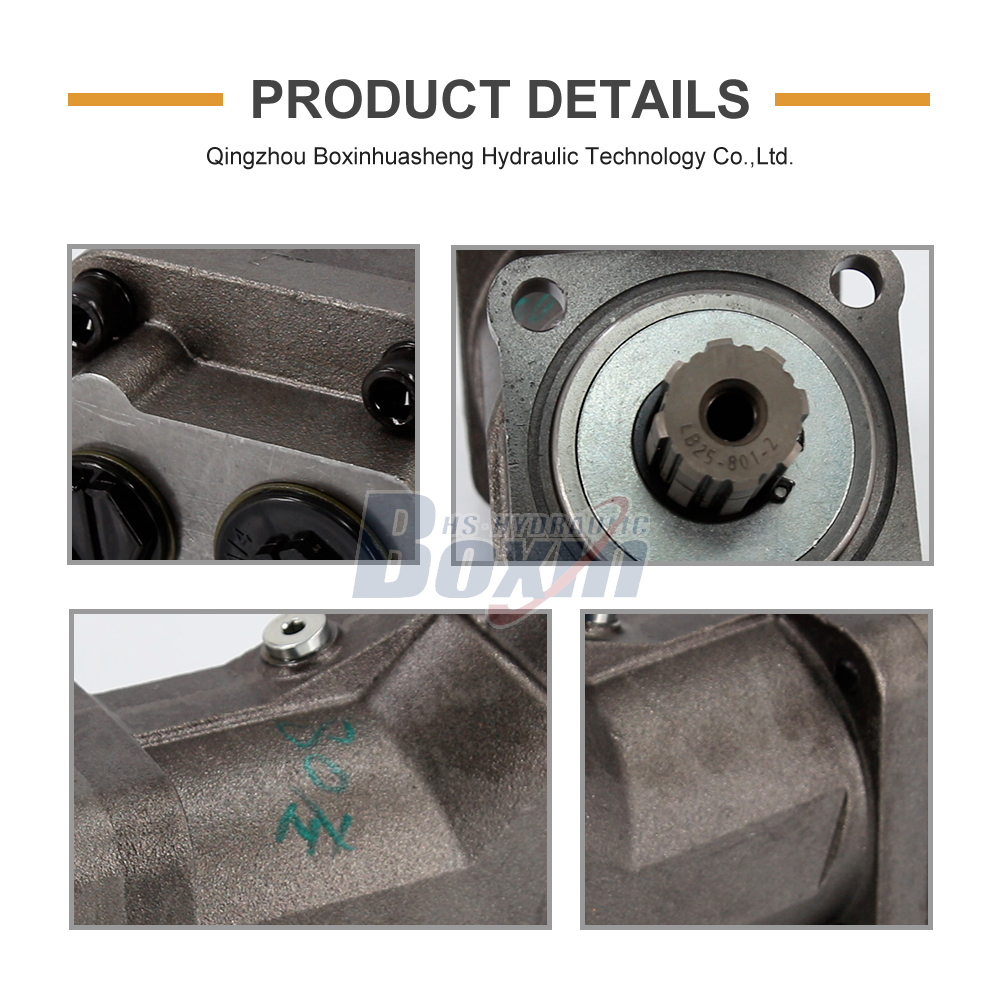

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems detailed image

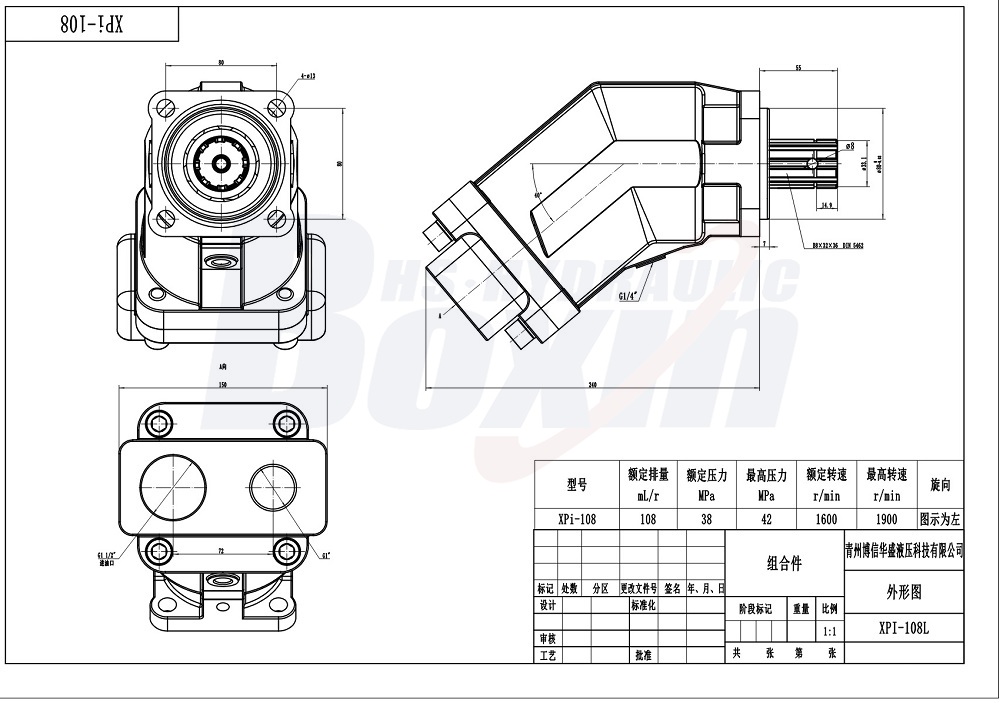

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems drawing image

The XPI-108L Series is a high-performance 108 cc/rev fixed displacement axial piston pump designed for demanding hydraulic systems. Operating at a rated pressure of 38 MPa with peaks up to 42 MPa, this left-hand rotation pump is engineered for durability and efficiency in heavy-duty applications ranging from construction machinery to agricultural equipment.

XPI Series Hydraulic Piston Pump Parameters
Displacement 32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 25 cc/rev, 108 cc/rev
Rated Pressure 38 MPa (5511 psi)
Max Pressure 42 MPa (6091 psi)
Rated Speed 1600 r/min
Max Speed 1900 r/min
Rotation L: Left (counter-clockwise), R: Right (clockwise)
Material Cast Iron
Structure Swashplate
Flange Version ISO-4 Mounting Holes
Shaft Type H: Rectangle Spline

As a leading large-scale manufacturer of hydraulic solutions, we offer the XPI-108L Series Hydraulic Piston Pump, specifically engineered for high-pressure environments. With a displacement of 108 cc/rev and a maximum speed of 1900 r/min, this pump is ideal for concrete boom pumps, wheel loaders, mini-excavators, and truck-mounted cranes. We provide comprehensive manufacturing services including OEM, private labeling, and custom engineering to meet specific technical requirements. Our factory direct supply ensures competitive wholesale pricing for global markets. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need bulk procurement or specialized customization for material handling and earthmoving equipment, our facility provides reliable support and consistent quality. Join our global distribution network and benefit from our extensive manufacturing expertise in industrial vehicle and agricultural hydraulic systems.

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems application image

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems packing image

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems company image

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems certification image
