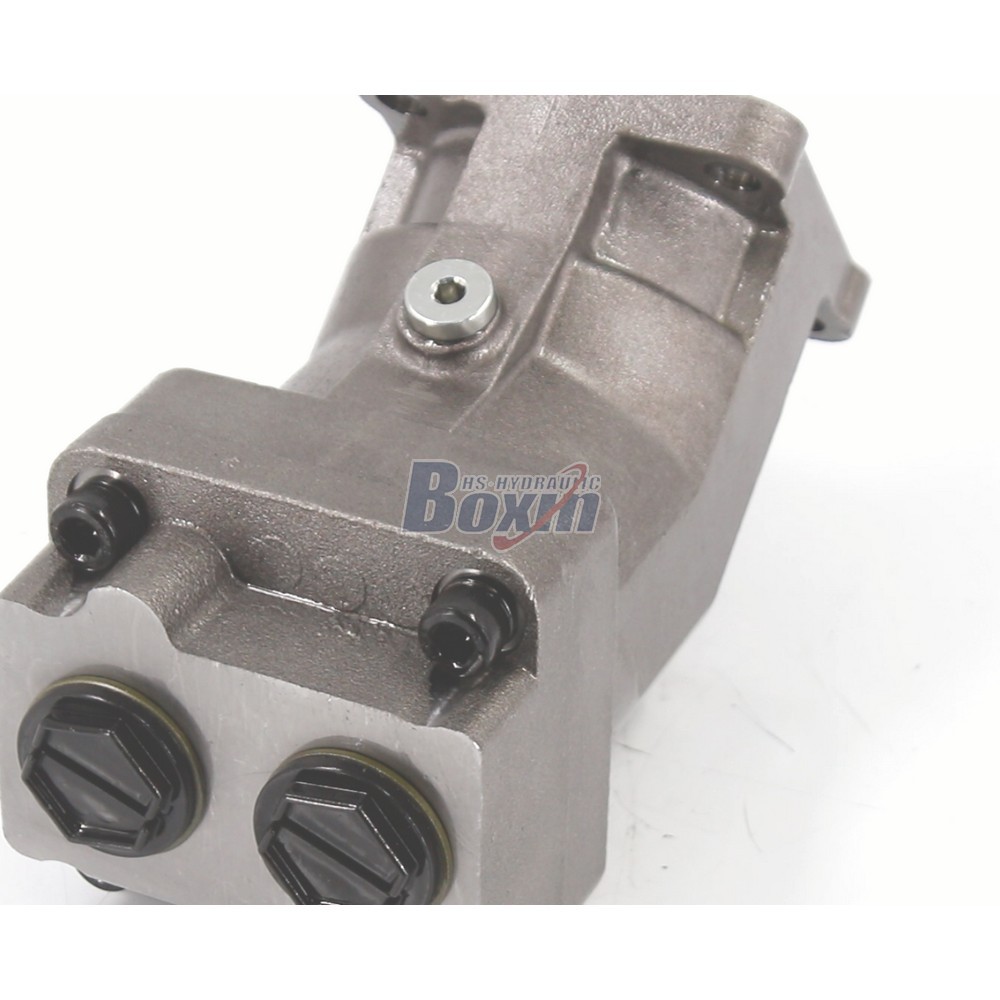

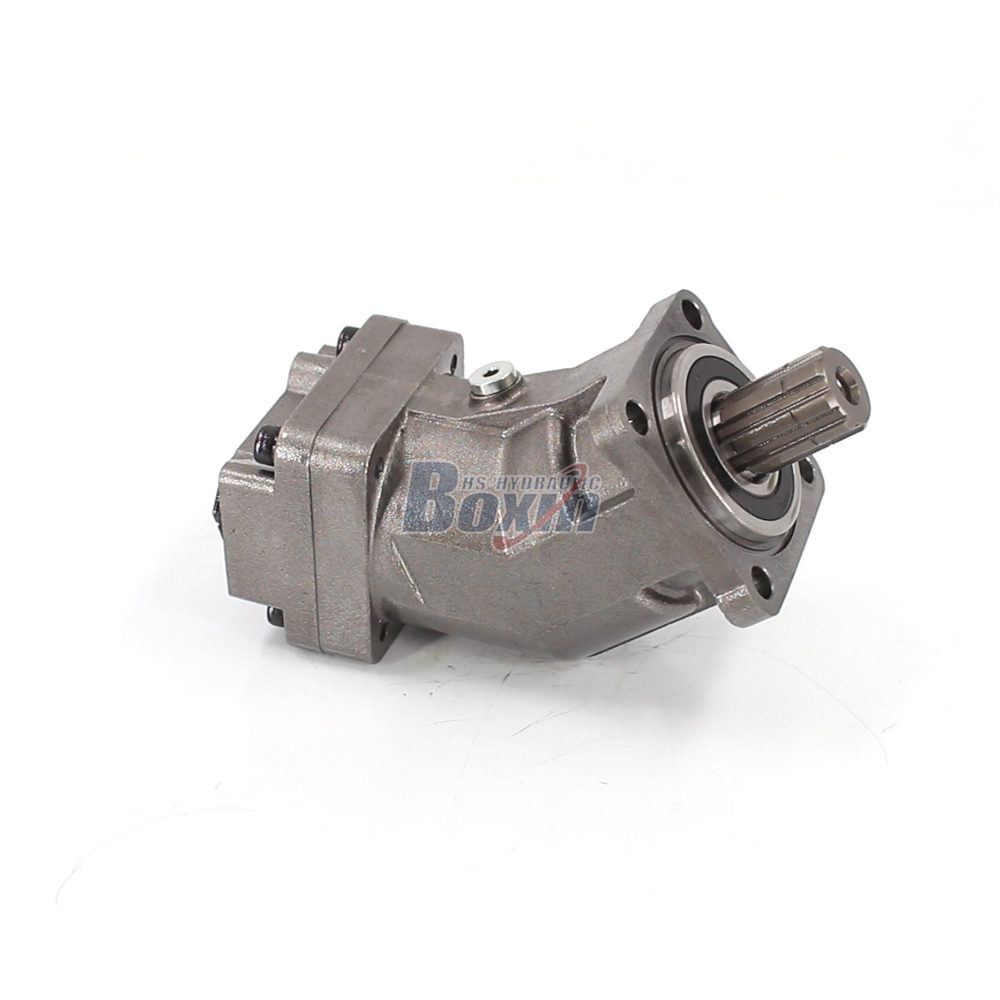

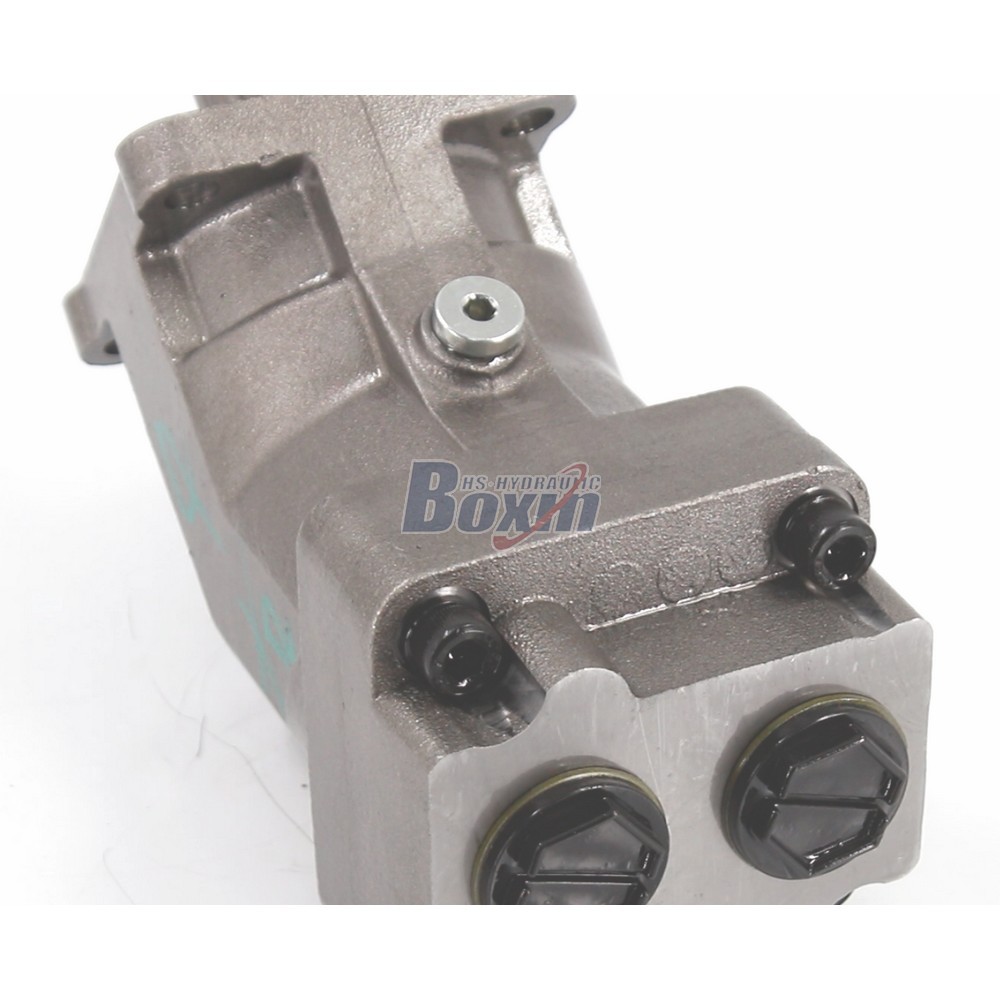

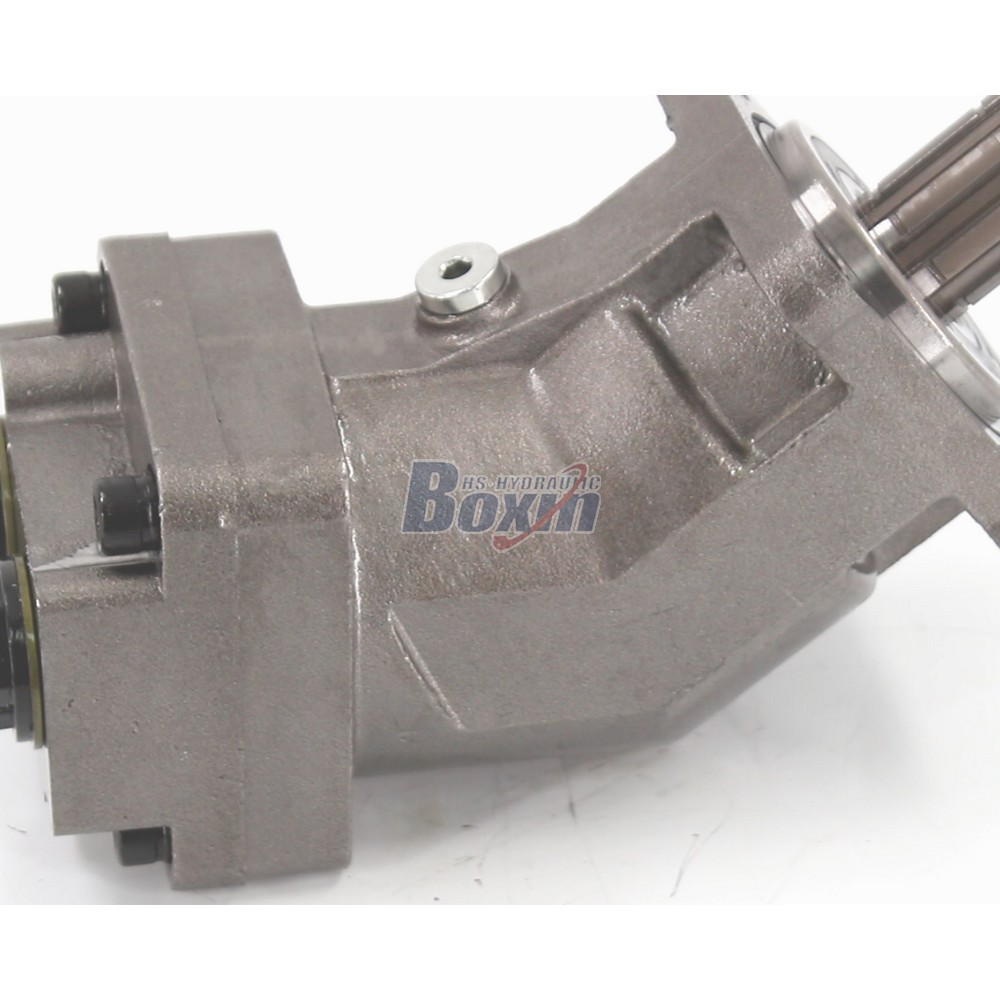

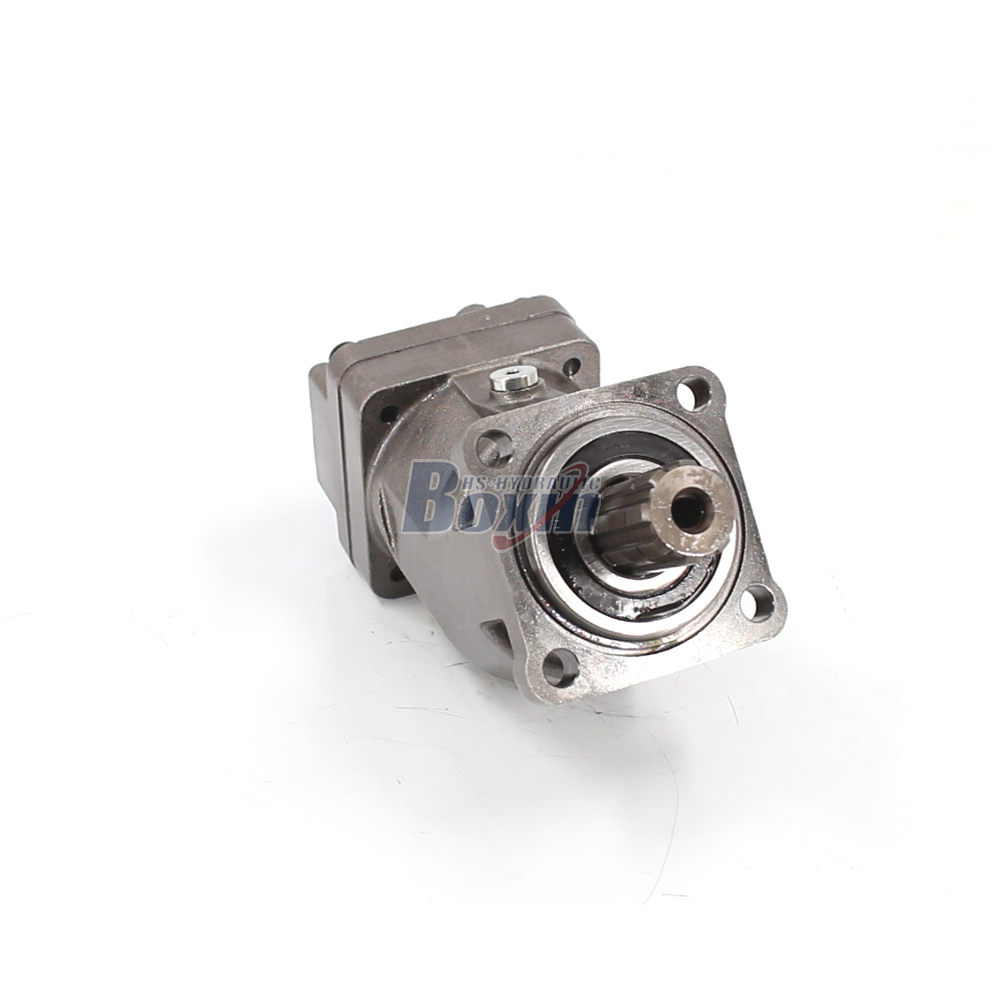

The XPi-40L Hydraulic Piston Pump delivers 40 cc/rev displacement with a rated pressure of 38 MPa (5511 psi) and max speed of 1900 r/min. Manufactured by a 25-year IATF 16949 certified factory, this left-rotation pump is ideal for mini-excavators, skid steers, and agricultural vehicles, offering reliable OEM/ODM solutions.
| XPI Series Hydraulic Piston Pump Parameters | |
|---|---|
| Displacement | 32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 25 cc/rev, 108 cc/rev |
| Rated Pressure | 38 MPa (5511 psi) |
| Max Pressure | 42 MPa (6091 psi) |
| Rated Speed | 1600 r/min |
| Max Speed | 1900 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Material | Cast Iron |
| Structure | Swashplate |
| Flange Version | ISO-4 Mounting Holes |
| Shaft Type | H: Rectangle Spline |
**1. High-Efficiency Hydraulic Piston Pump Specs**
- Delivers precise 40 cc/rev displacement with left-hand (counter-clockwise) rotation, optimized for compact hydraulic systems.
- Operates at a rated pressure of 38 MPa (5511 psi) and withstands max pressure up to 42 MPa (6091 psi), ensuring stable power output.
**2. Reliable XPi-40L Hydraulic Pump for Heavy Duty**
- Designed for rigorous applications including mini-excavators, skid steer loaders, and concrete boom pumps with a rated speed of 1600 r/min.
- Features advanced sealing technology and anti-rust treatment, guaranteeing longevity in harsh construction and earth-moving environments.
**3. Versatile 40cc Piston Pump Applications**
- Perfectly compatible with material handling equipment like forklifts, telehandlers, and wheel loaders, providing consistent flow control.
- Supports diverse industrial vehicles and agricultural tractors, serving as a direct replacement for international mainstream brands.
**4. Professional Manufacturer Quality Assurance**
- Backed by 25+ years of expertise and IATF 16949 certification, every unit undergoes 100% bench testing for pressure, flow, and leakage.
- Produced in 4 modern factories with 260+ machining centers, ensuring CE compliance and SGS-certified oil cleanliness standards.
**5. Factory Direct Sales & OEM/ODM Support**
- Offers comprehensive customization including private label laser marking, casting modifications, and tailored packaging for global distributors.
- With an annual capacity of 1,500,000 units, we provide wholesale China factory pricing and secure heavy-duty wooden crate shipping worldwide.
